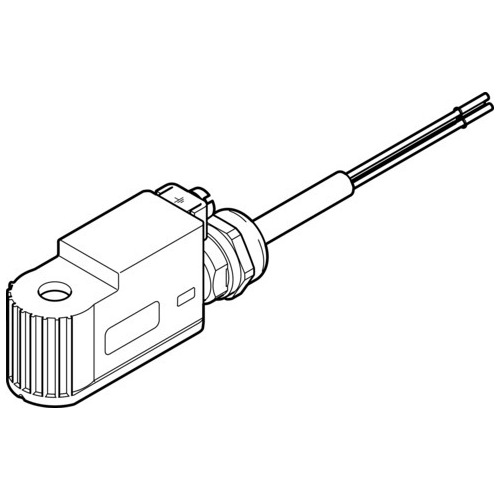

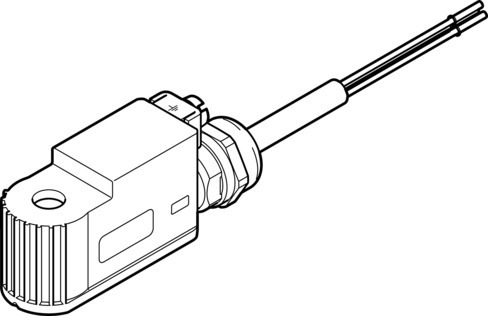

VACF-B-K1-1-1-EX4-M Solenoid coil

VACF-B-K1-1-1-EX4-M

$189.25
RRP $212.00
SAVE $22.75 (11%)


Solenoid coil

Solenoid coil

VACF-B-K1-1-1-EX4-M

8059804

GTIN: 4052568290238

Downloads

VACS_EN.PDF

Technical data

Links

Spare parts



Technical Data

  • Mounting positionoptional
  • Switching position indicatorno
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Characteristic coil data24 V DC: 4.36 W
  • Permissible voltage fluctuations+/- 10 %
  • CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive
  • CE marking (see declaration of conformity)To UK EX instructions To UK RoHS instructions
  • Explosion protection certification outside the EUEPL Db (BR) EPL Db (CN) EPL Db (GB) EPL Db (IEC-EX) EPL Gb (BR) EPL Gb (CN) EPL Gb (GB) EPL Gb (IECEx)
  • Explosion protectionZone 1 (ATEX) Zone 1 (BR) Zone 1 (CN) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (BR) Zone 21 (CN) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX)
  • Certificate issuing authorityCML22UKEX5255X DNV17.0013X GYJ23.1154X IBExU 16 ATEX1146X IECEx IBE16.0024X
  • ATEX category gasII 2G
  • ATEX category dustII 2D
  • Explosion ignition protection type for gasEx mb IIC T5 Gb
  • Explosion ignition protection type for dustEx mb IIIC T95°C Db
  • Explosion ambient temperature-30°C <= Ta <= +40°C
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Degree of protectionIP65
  • Ambient temperature-30 °C ... 40 °C
  • Product weight170 g
  • Electrical connection3-wire Cable with open end
  • Cable length1 m
  • Nominal cross section conductor0.75 mm²
  • Type of mountingVia knurled nut
  • Note on materialsRoHS-compliant
  • Material solenoid coilAluminium Epoxy resin Copper Steel
  • Material windingCopper

(8059804)

SKU 8059804
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
