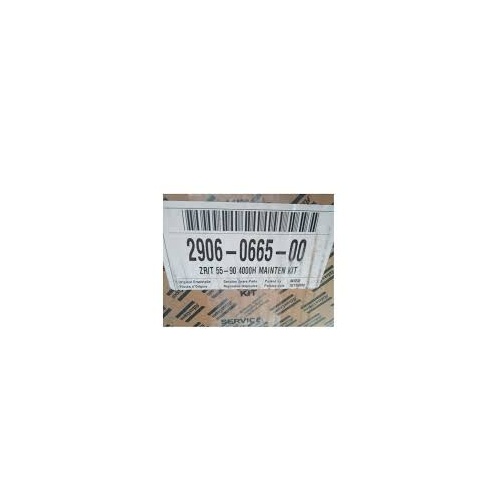

2906 0665 00 KIT 4000 HRS

KIT 4000 HRS

Air Filter, Oil Filter, Gear CAse Breather

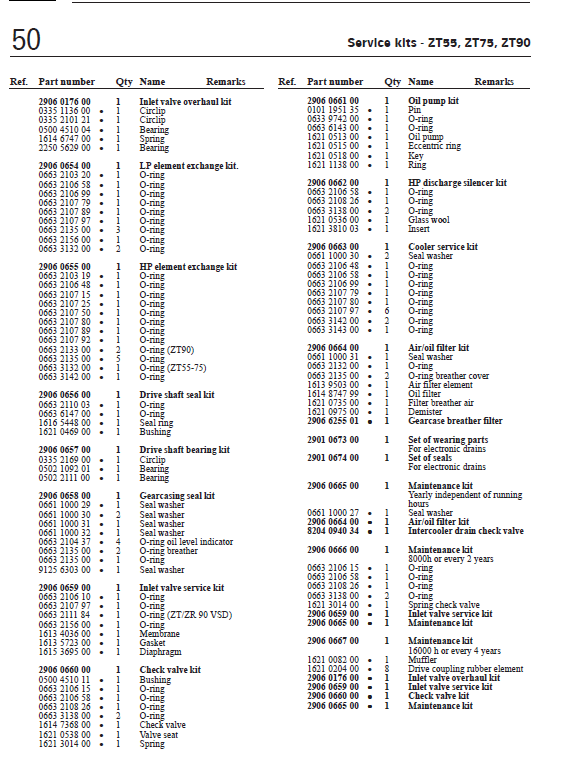

Part number Qty Name Remarks
2906 0176 00 1 Inlet valve overhaul kit
0335 1136 00 • 1 Circlip
0335 2101 21 • 1 Circlip
0500 4510 04 • 1 Bearing
1614 6747 00 • 1 Spring
2250 5629 00 • 1 Bearing
2906 0654 00 1 LP element exchange kit.
0663 2103 20 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2106 99 • 1 O-ring
0663 2107 79 • 1 O-ring
0663 2107 89 • 1 O-ring
0663 2107 97 • 1 O-ring
0663 2135 00 • 3 O-ring
0663 2156 00 • 1 O-ring
0663 3132 00 • 2 O-ring
2906 0655 00 1 HP element exchange kit
0663 2103 19 • 1 O-ring
0663 2106 48 • 1 O-ring
0663 2107 15 • 1 O-ring
0663 2107 25 • 1 O-ring
0663 2107 50 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 89 • 1 O-ring
0663 2107 92 • 1 O-ring
0663 2133 00 • 2 O-ring (ZT90)
0663 2135 00 • 5 O-ring
0663 3132 00 • 1 O-ring (ZT55-75)
0663 3142 00 • 1 O-ring
2906 0656 00 1 Drive shaft seal kit
0663 2110 03 • 1 O-ring
0663 6147 00 • 1 O-ring
1616 5448 00 • 1 Seal ring
1621 0469 00 • 1 Bushing
2906 0657 00 1 Drive shaft bearing kit
0335 2169 00 • 1 Circlip
0502 1092 01 • 1 Bearing
0502 2111 00 • 1 Bearing
2906 0658 00 1 Gearcasing seal kit
0661 1000 29 • 1 Seal washer
0661 1000 30 • 2 Seal washer
0661 1000 31 • 1 Seal washer
0661 1000 32 • 1 Seal washer
0663 2104 37 • 4 O-ring oil level indicator
0663 2135 00 • 2 O-ring breather
0663 2135 00 • 1 O-ring
9125 6303 00 • 1 Seal washer
2906 0659 00 1 Inlet valve service kit
0663 2106 10 • 1 O-ring
0663 2107 97 • 1 O-ring
0663 2111 84 • 1 O-ring (ZT/ZR 90 VSD)
0663 2156 00 • 1 O-ring
1613 4036 00 • 1 Membrane
1613 5723 00 • 1 Gasket
1615 3695 00 • 1 Diaphragm
2906 0660 00 1 Check valve kit
0500 4510 11 • 1 Bushing
0663 2106 15 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1614 7368 00 • 1 Check valve
1621 0538 00 • 1 Valve seat
1621 3014 00 • 1 Spring
Ref. Part number Qty Name Remarks
2906 0661 00 1 Oil pump kit
0101 1951 35 • 1 Pin
0633 9742 00 • 1 O-ring
0663 6143 00 • 1 O-ring
1621 0513 00 • 1 Oil pump
1621 0515 00 • 1 Eccentric ring
1621 0518 00 • 1 Key
1621 1138 00 • 1 Ring
2906 0662 00 1 HP discharge silencer kit
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 0536 00 • 1 Glass wool
1621 3810 03 • 1 Insert
2906 0663 00 1 Cooler service kit
0661 1000 30 • 2 Seal washer
0663 2106 48 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2106 99 • 1 O-ring
0663 2107 79 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 97 • 6 O-ring
0663 3142 00 • 2 O-ring
0663 3143 00 • 1 O-ring
2906 0664 00 1 Air/oil filter kit
0661 1000 31 • 1 Seal washer
0663 2132 00 • 1 O-ring
0663 2135 00 • 2 O-ring breather cover
1613 9503 00 • 1 Air filter element
1614 8747 99 • 1 Oil filter
1621 0735 00 • 1 Filter breather air
1621 0975 00 • 1 Demister
2906 6255 01 • 1 Gearcase breather filter
2901 0673 00 1 Set of wearing parts
For electronic drains
2901 0674 00 1 Set of seals
For electronic drains
2906 0665 00 1 Maintenance kit
Yearly independent of running
hours
0661 1000 27 • 1 Seal washer
2906 0664 00 • 1 Air/oil filter kit
8204 0940 34 • 1 Intercooler drain check valve
2906 0666 00 1 Maintenance kit
8000h or every 2 years
0663 2106 15 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 3014 00 • 1 Spring check valve
2906 0659 00 • 1 Inlet valve service kit
2906 0665 00 • 1 Maintenance kit
2906 0667 00 1 Maintenance kit
16000 h or every 4 years
1621 0082 00 • 1 Muffler
1621 0204 00 • 8 Drive coupling rubber element
2906 0176 00 • 1 Inlet valve overhaul kit
2906 0659 00 • 1 Inlet valve service kit
2906 0660 00 • 1 Check valve kit
2906 0665 00 • 1 Maintenance kit
